管道预制自动焊接中心（卡盘+卡盘）

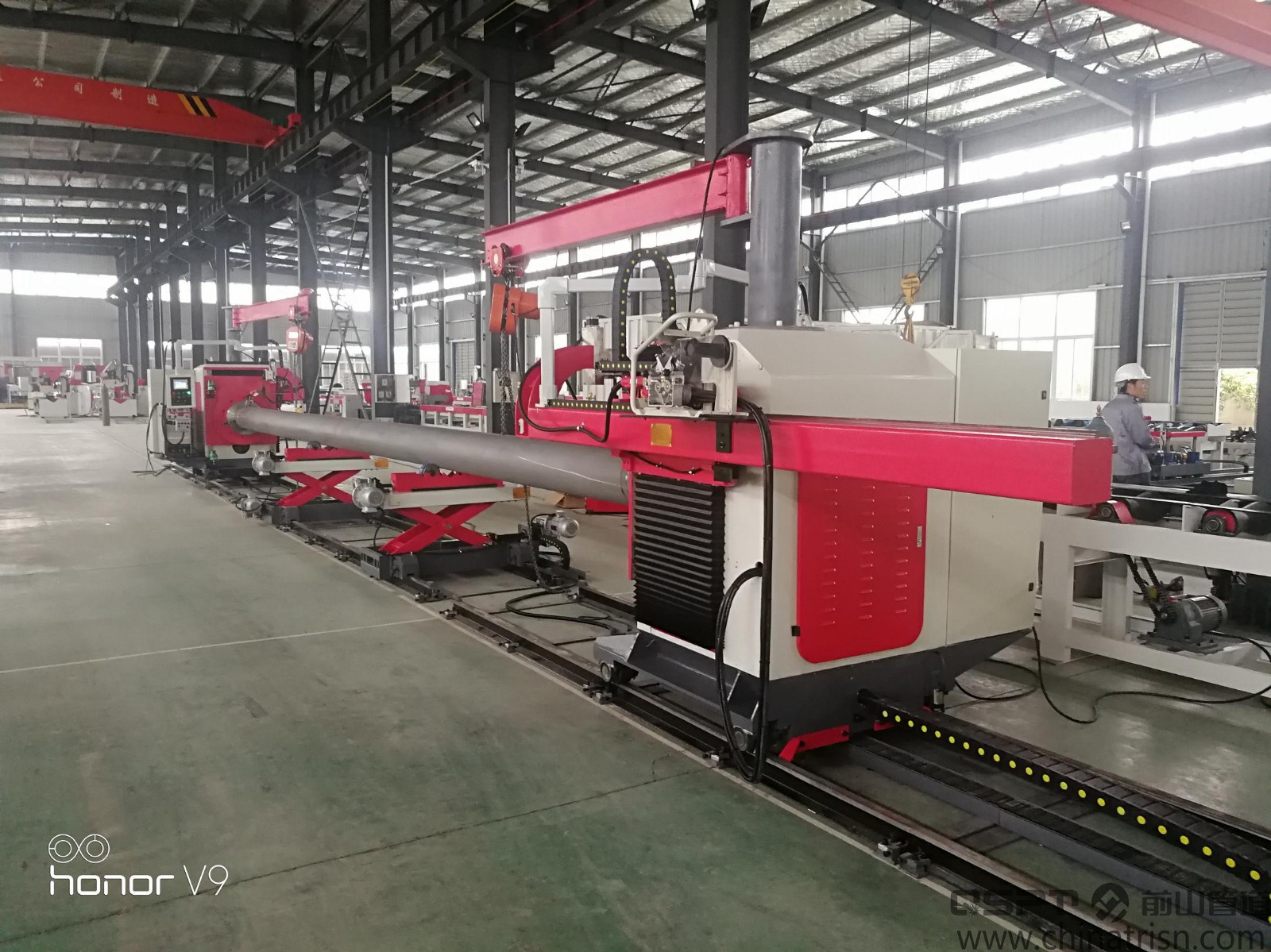

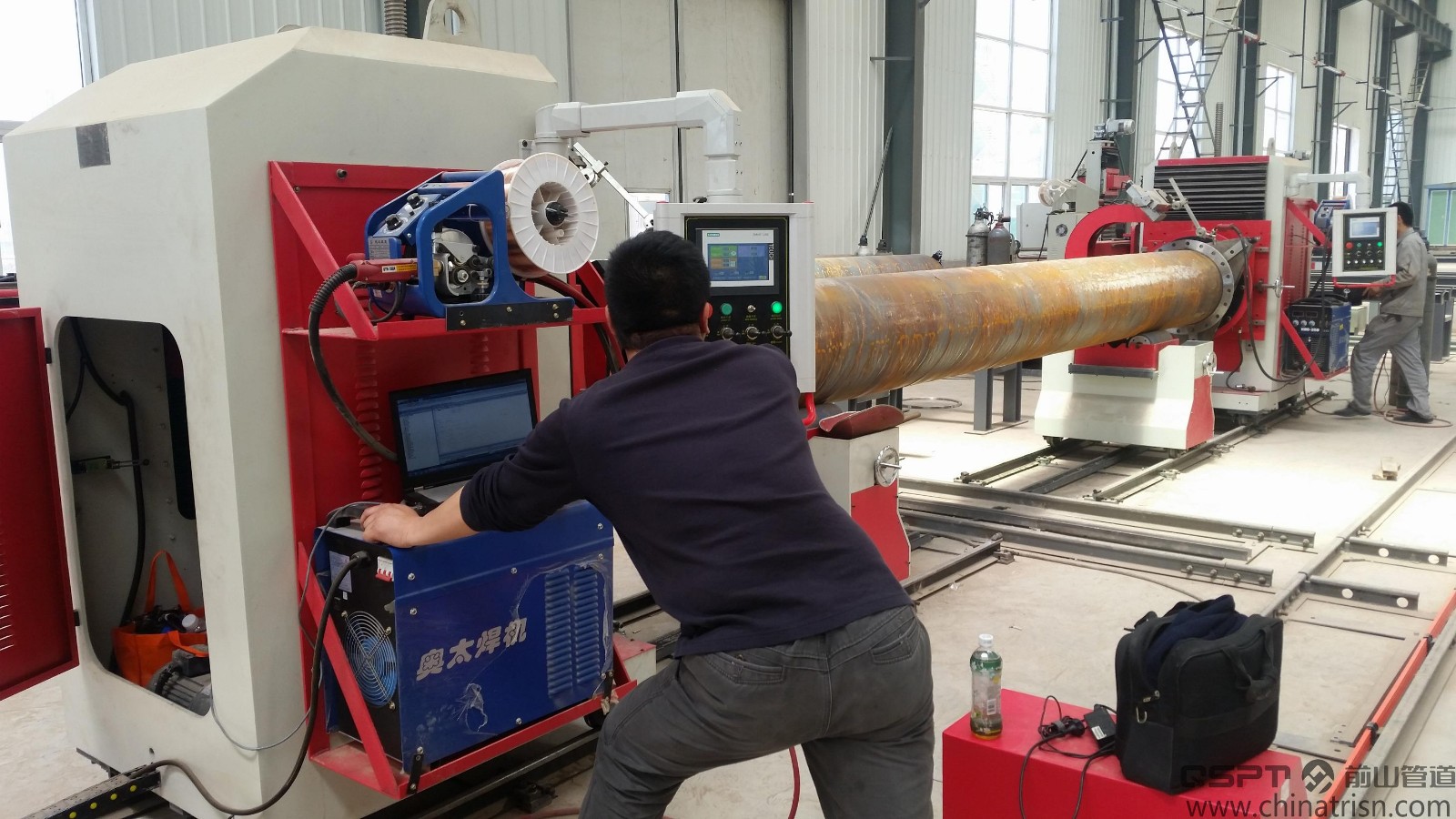

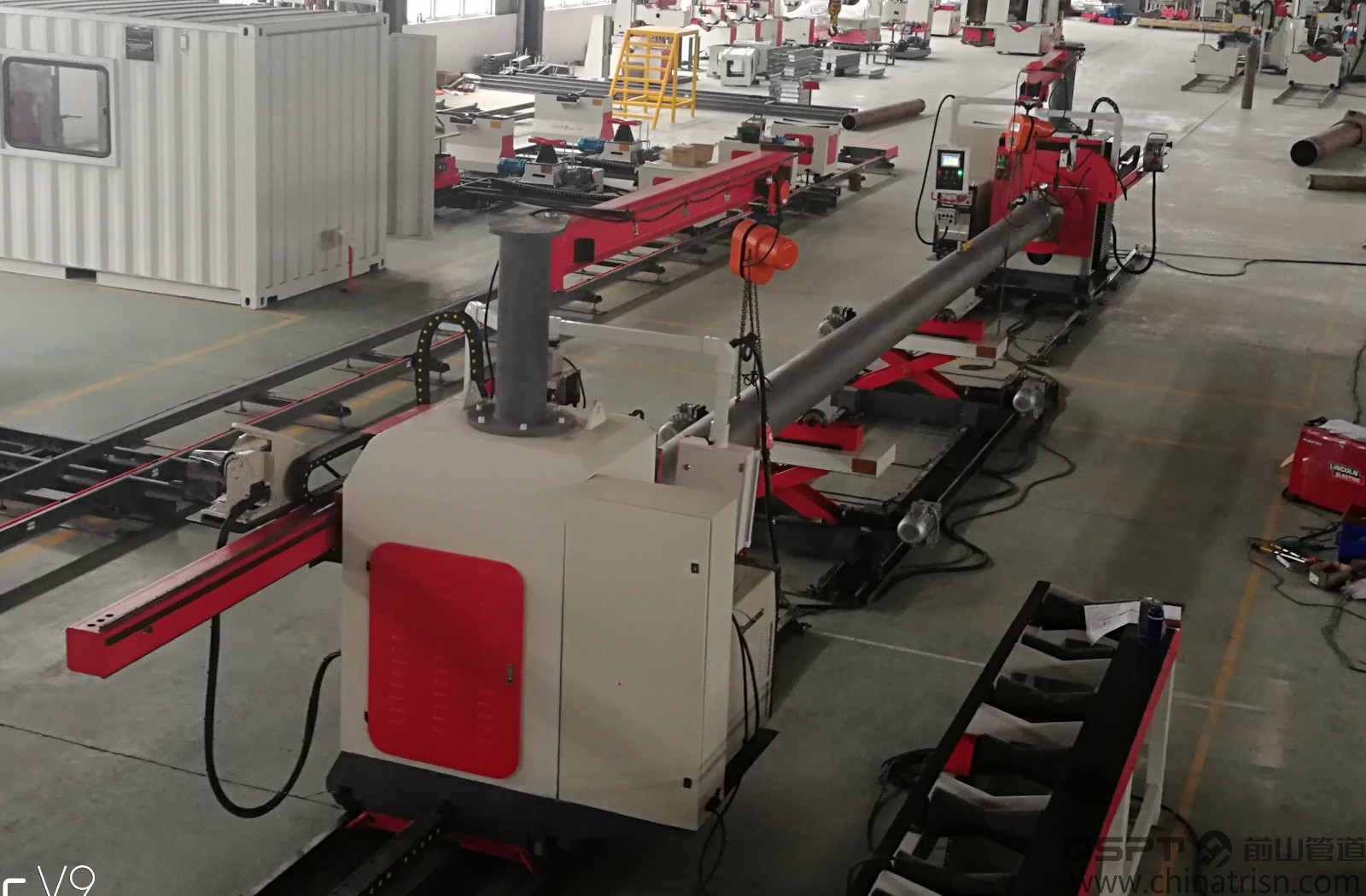

管道预制自动焊接中心（卡盘+卡盘）Pipe Fabrication Automatic Welding Center(Chuck + Chuck)

产品型号：PFFWC-16Ca/24Ca/32Ca/48Ca

Product Model: PFFWC-16Ca/24Ca/32Ca/48Ca

适用管径：DN400/DN600/DN800/DN1200

Pipe Diameter Applicable: DN400/DN600/DN800/DN1200

性能特点：适用于“法兰+管子+法兰”类管段的焊接；焊接效率提高；2台固定式带卡盘的焊接变位器；1套安装在其上的焊接伸缩臂； 1条15#机加工轨道；两端同时进行法兰与管子的组对，组对完成后，两端同步进行焊口的自动焊接；标配2台林肯Flextech500多功能焊接电源；采用QSPT打底焊接技术，进行TIG/MIG打底焊接；TIG/MIG/MAG/SAW填充、盖面焊接；铝合金线控盒操作

Performance features: Suitable for fittingup & welding spool pieces such as “flange + pipe + flange”; welding efficiency increased ; two fixed type welding positioner with chuck; one telescopic boom for welding; one 15# machined rail；After finishing fitting up 2 weld joint at the same time, to start welding automatically simultaneously; standard configuration: 2 Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT’s root welding technology; TIG/MIG/SAW fill-in and cap welding; operated with an aluminum alloy wire control box.
