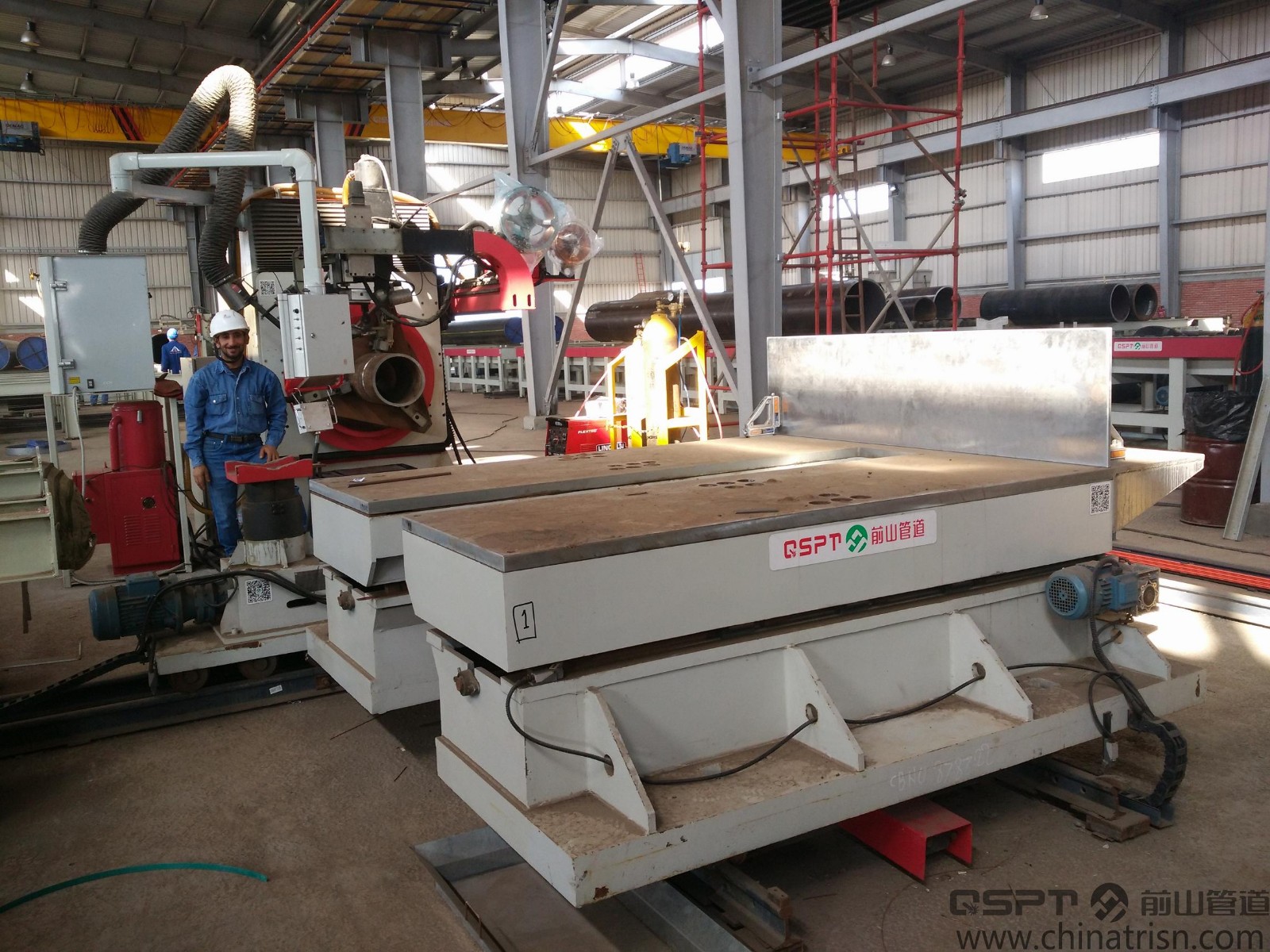

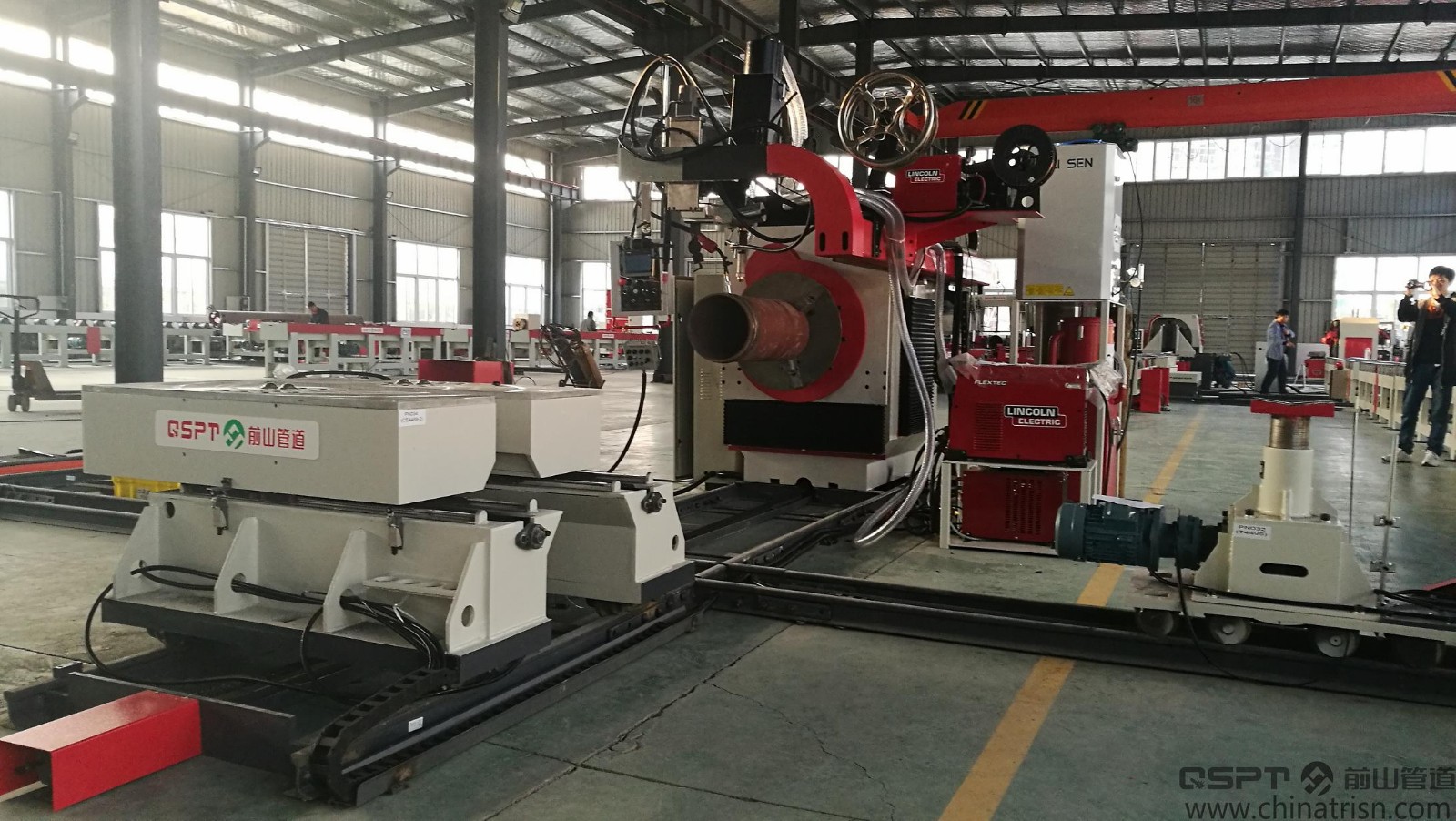

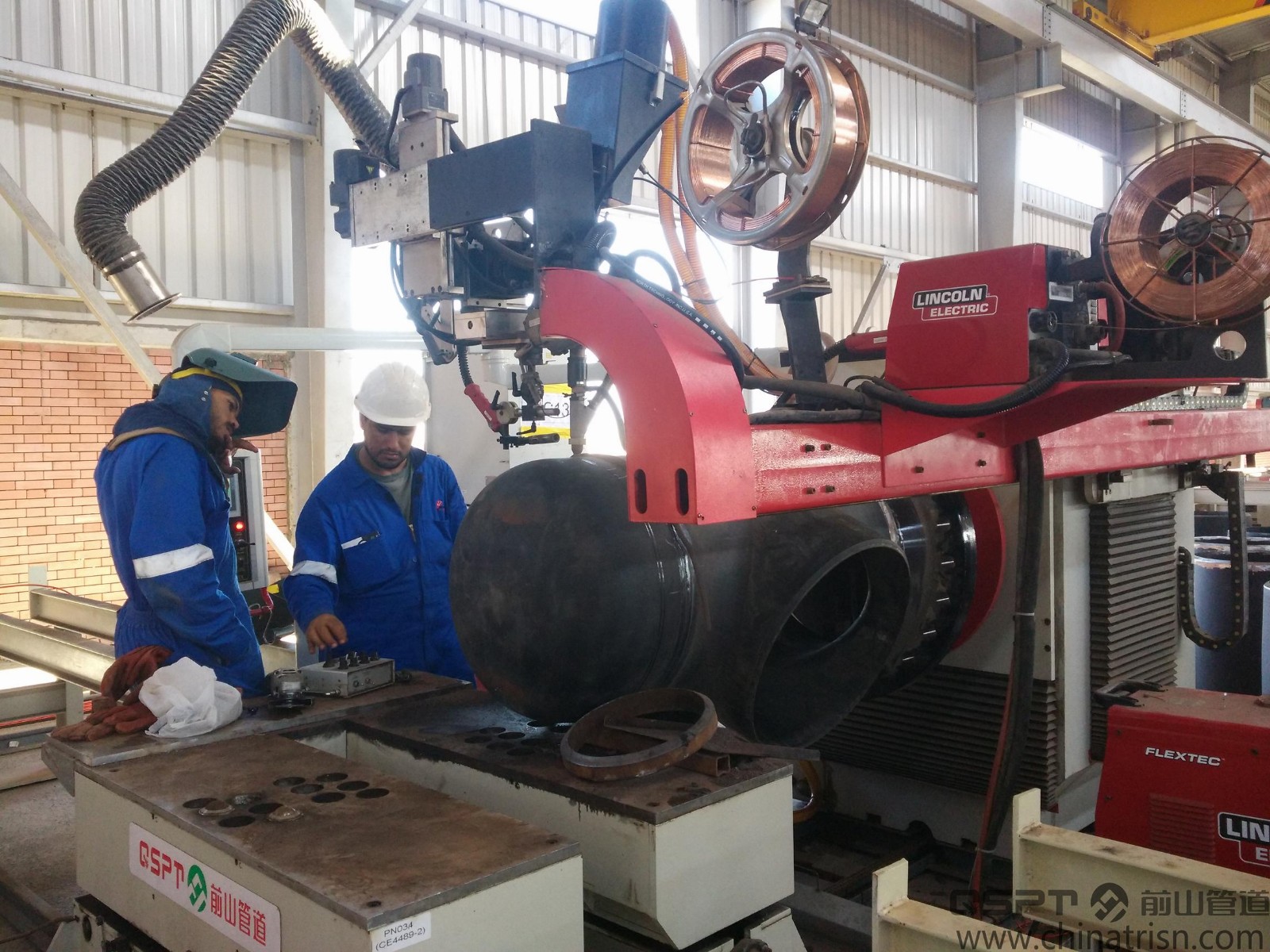

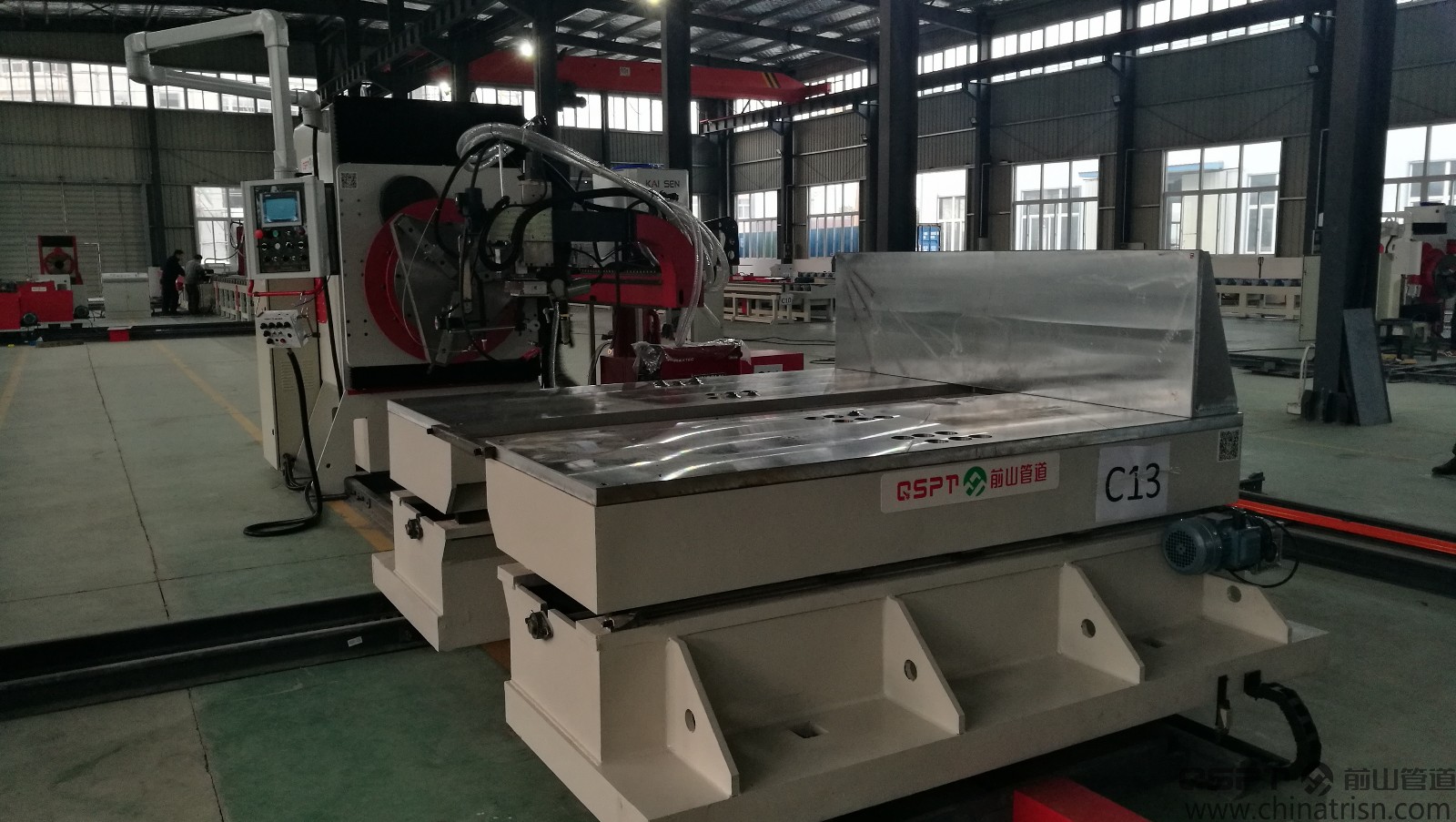

管道预制组对焊接中心(组对器+卡盘)

功能介绍 Function introduction

产品型号:PFFWC-16Ca/24Ca/32Ca

Model: PFFWC-16Ca/24Ca/32Ca

适用管径:DN400/DN600/DN800

Pipe Diameter Applicable: DN400/DN600/DN800

性能特点:适用于“管件+管子+管件”类较短管段的焊接;焊接效率提高;1台固定式带卡盘的焊接变位器;1套安装在其上的焊接伸缩臂;1台多功能组对机头;1条15#机加工轨道;变位器和组对器先共同完成焊口的组对,再移走组对器,进行焊口的自动焊接;标配林肯Flextech650多功能焊接电源;采用QSPT打底焊接技术,进行TIG/MIG打底焊接;TIG/MIG/MAG/SAW填充、盖面焊接;铝合金线控盒操作

Performance features: Suitable for fittingup & welding short spool pieces such as “fitting + pipe + fitting”; welding efficiency increased ; one fixed type welding positioner with chuck; one telescopic boom for welding; one multi-functional fit-up head; one 15# machined rail;After finishing fitting up weld joint with fit-up machine and positioner , moving away the fit-up machine to start welding automatically; standard configuration: Lincoln Flextech650 multi-function welding power; TIG/MIG root welding with QSPT’s root welding technology; TIG/MIG/SAW fill-in and cap welding; operated with an aluminum alloy wire control box.
