悬臂式管道自动焊机(普通型)

功能介绍 Function introduction

产品型号:CPAWM-16Ba/24Ba/32Ba/48Ba

Model: CPAWM-16Ba/24Ba/32Ba/48Ba

适用管径:DN400/DN600/DN800/DN1200

Pipe Diameter Applicable: DN400/DN600/DN800/DN1200

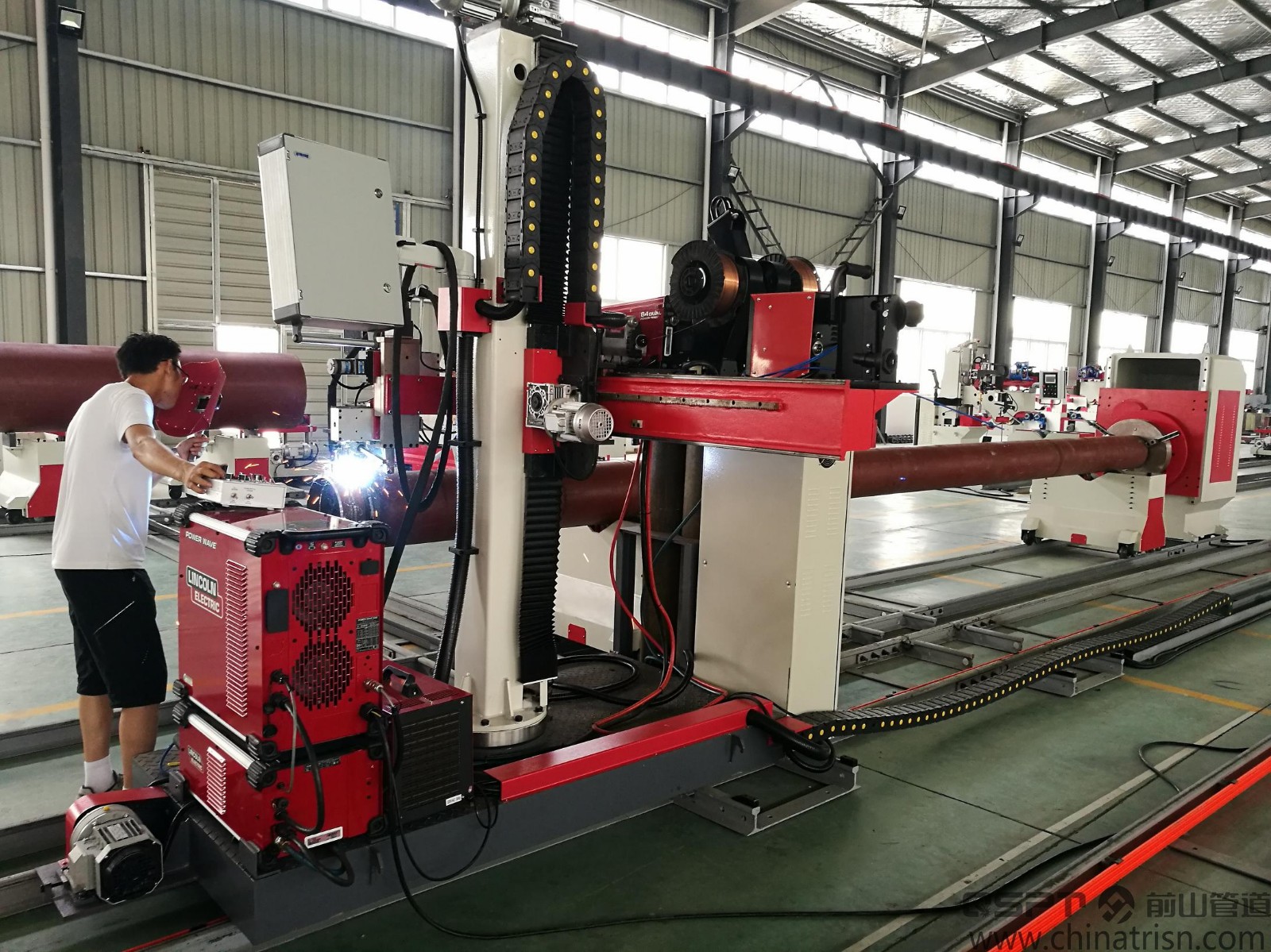

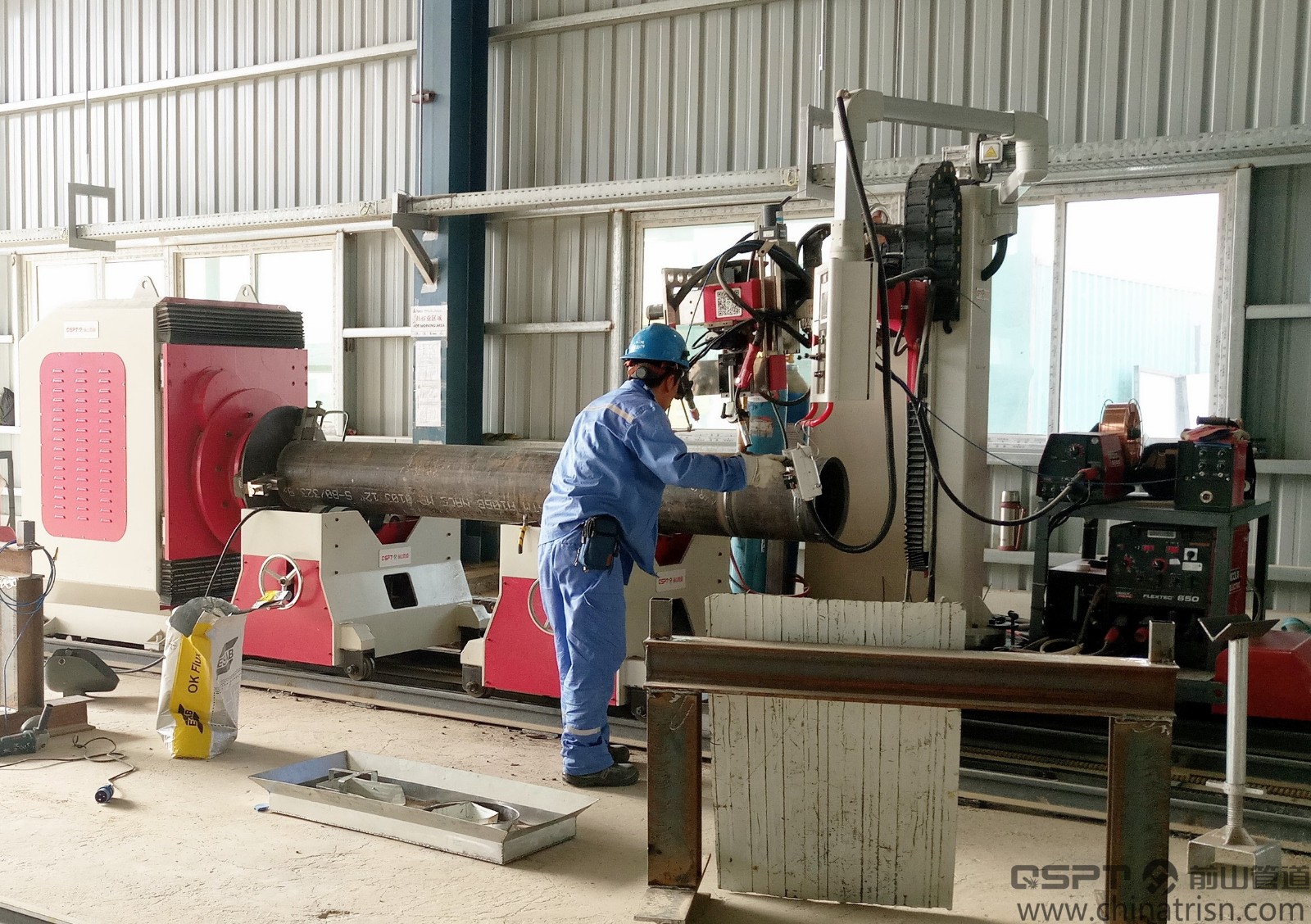

性能特点:较适用于“管件+管件”管段及具有多道焊缝管段的焊接;可进行多道焊缝的连续焊接;1台固定式带普通卡盘的焊接变位器;2台移动式滚轮支撑小车;1台行走式悬臂焊接小车;标配林肯Flextech500多功能焊接电源;采用QSPT打底焊接技术,进行TIG/MIG打底焊接;TIG/MIG/MAG/SAW填充、盖面焊接;流线型焊接控制箱+铝合金线控盒操作。

Performance Features: suitable for welding “fitting + fitting”spool pieces and for spool pieces with multi-pass weld; able to do multi-pass welding continuously; equipped with: one fixed type welding positioner with the chuck; twomovable trolleys with supporting wheels; one traveling cantilever welding trolley; standard configuration: Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT’s root welding technology; TIG/MIG/SAW fill-in and cap welding; operation through a streamline welding control cabinet +an aluminum alloy wire control box.
