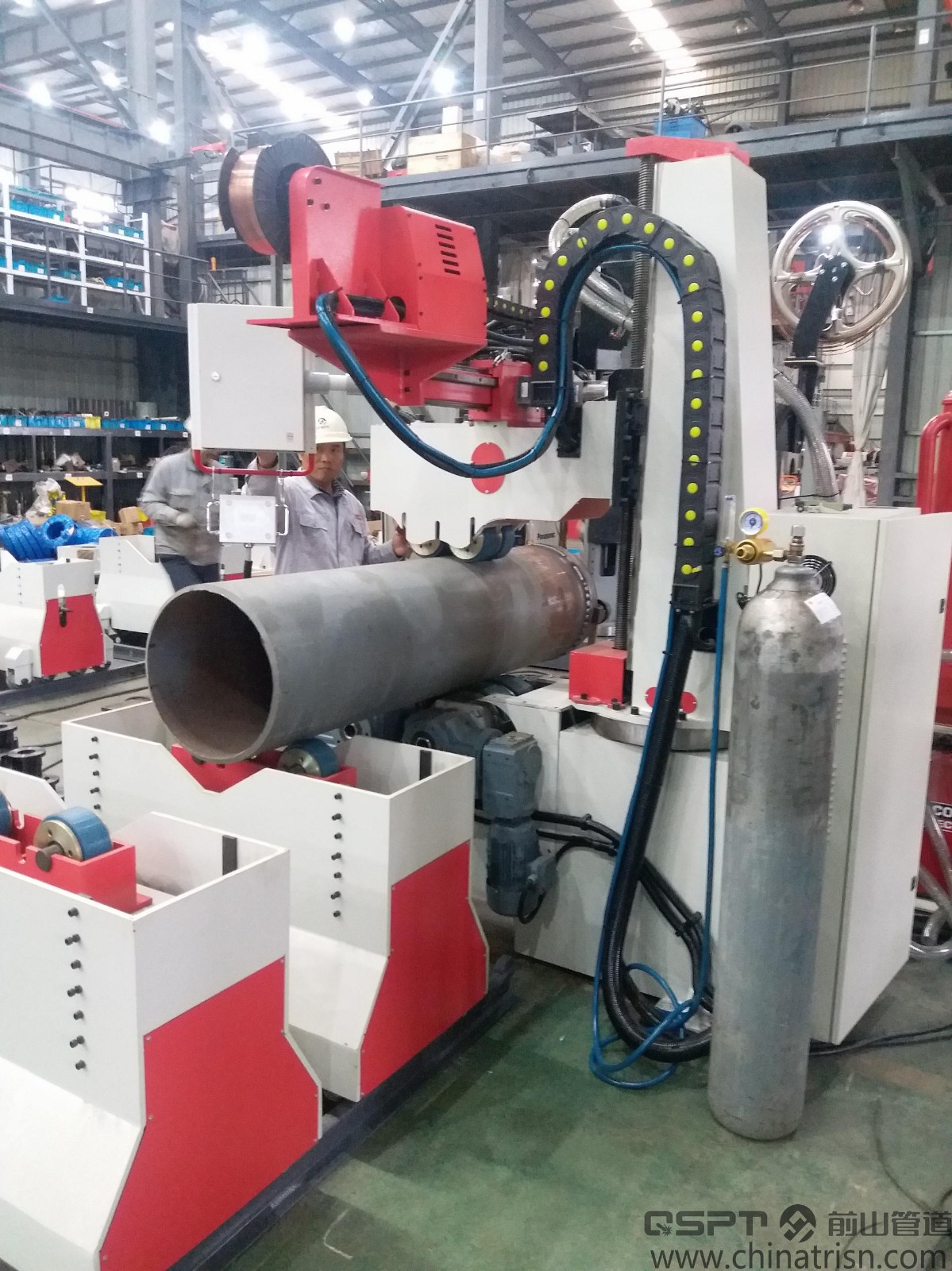

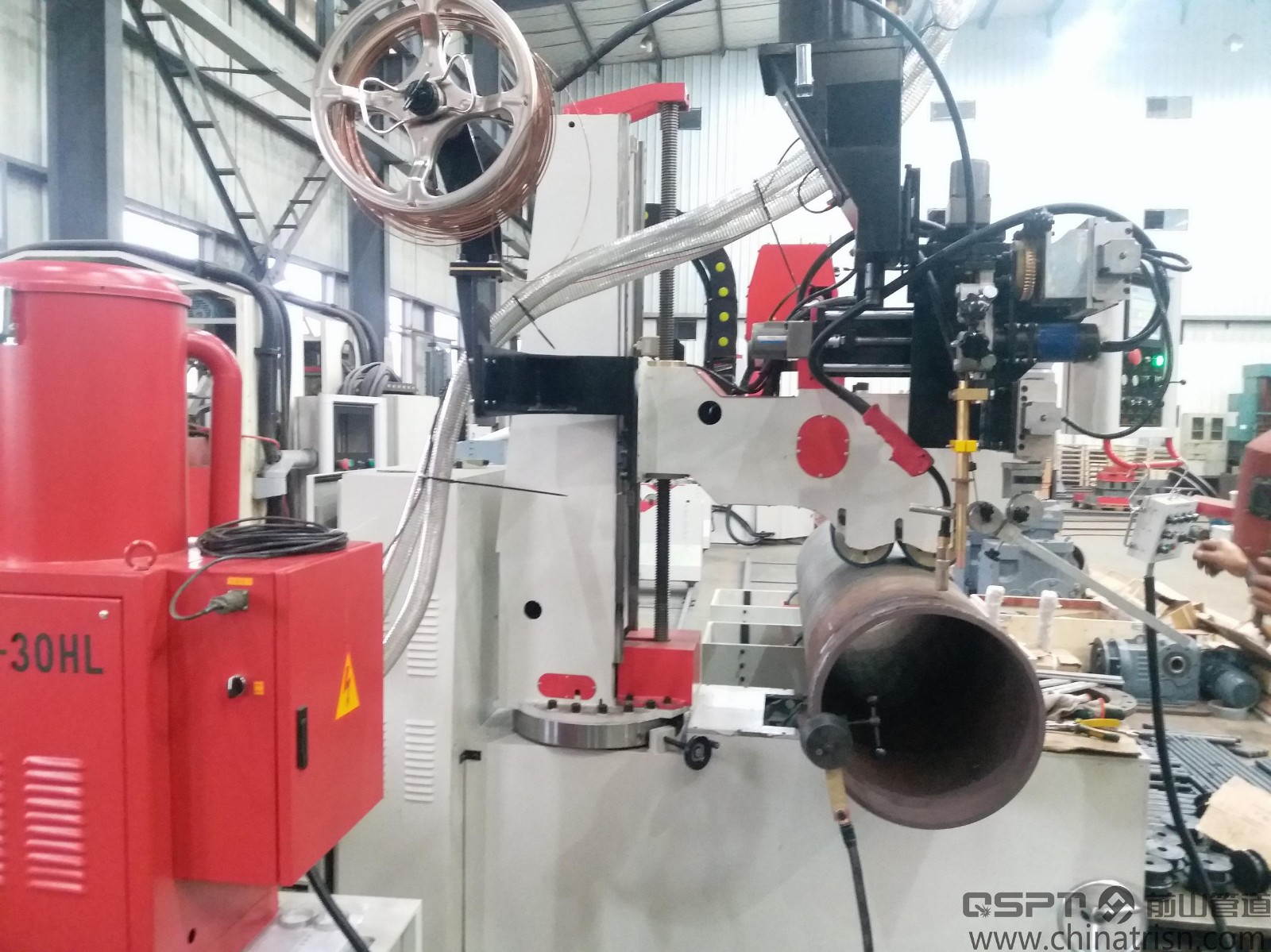

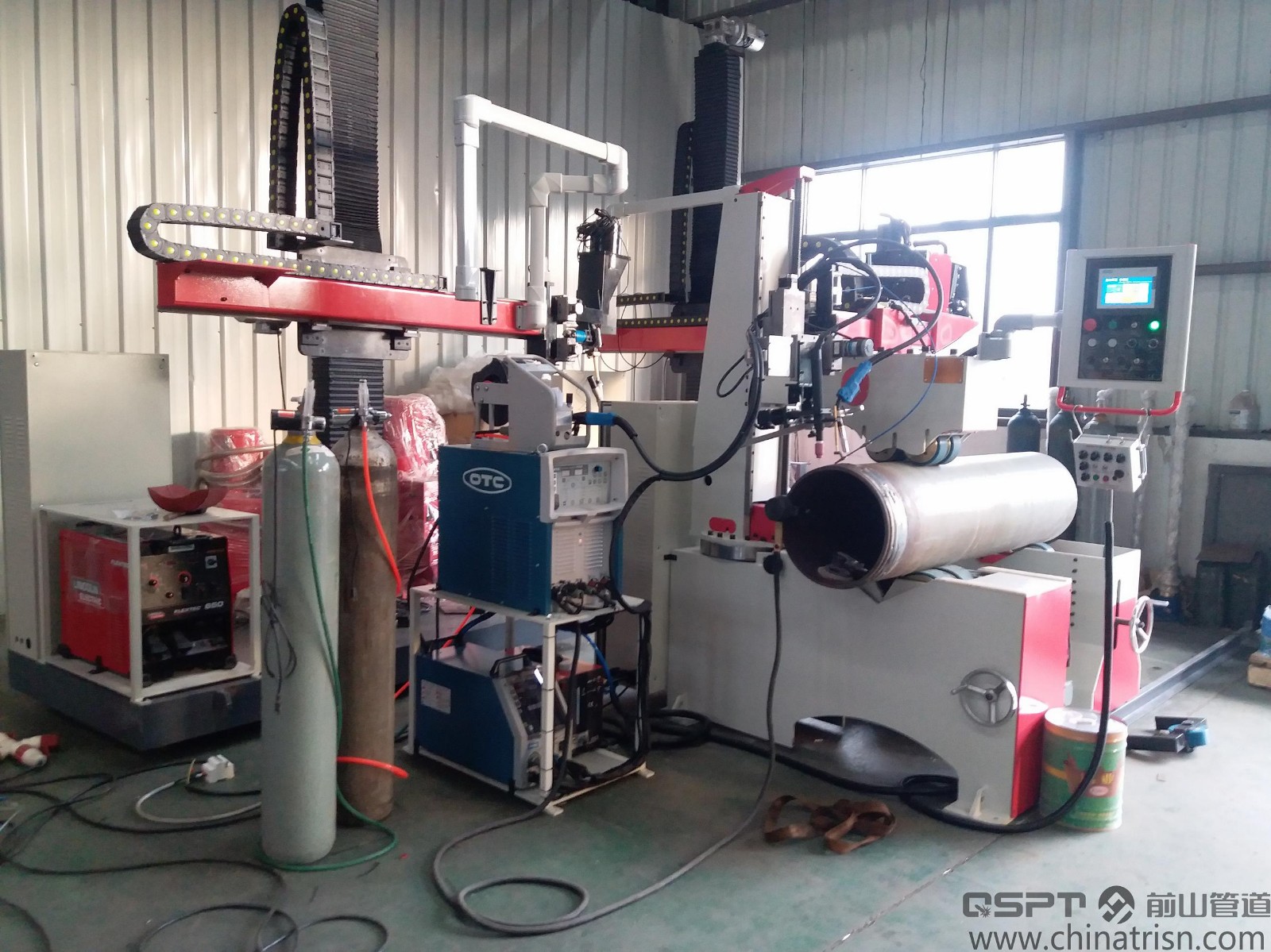

产品型号：PFAWM-16Ad/24Ad/32Ad/48Ad
Model: PFAWM-16Ad/24Ad/32Ad/48Ad
适用管径：DN600/DN800/DN1200
Pipe Diameter Applicable: DN 600/DN800/DN1200
性能特点：适用于大批量普通管道预制场合；2组4个包胶驱动滚轮；电机减速机驱动；2组4个包胶压紧滚轮；外置丝杆升降机构压紧；驱动滚轮内置及驱动系统外露；纵向伸缩臂快速焊口定位；标配林肯Flextech500多功能焊接电源；采用QSPT打底焊接技术，进行TIG/MIG打底焊接；TIG/MIG/MAG/SAW填充、盖面焊接；流线型焊接控制箱+铝合金线控盒操作；是普通管道焊接的较适合设备。
Performance Features: applicable for large amount of STD wall thickness pipe fabrication; twosets of polyurethane coated driving wheels(two pcs per set, totally four pcs);driven by motor and reducer; twosets of polyurethane coated hold-down wheels(two pcs per set, totally four pcs); held-down by embedded screw rod mechanism; built-in drivingwheel and exposeddriving system; fast positioning weld with longitudinal telescope boom;standard configuration : Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT’s root welding technology; TIG/MIG/SAW fill-in and cap welding; operation with a streamline welding control cabinet + an aluminum alloy wire control box; for STD wall thickness pipe welding.
