产品型号：PFFWM-16Ba/24Ba/32Ba
Model: PFFWM-16Ba/24Ba/32Ba
适用管径：DN400/DN600/DN800
Pipe Diameter Applicable: DN400/DN600/DN800

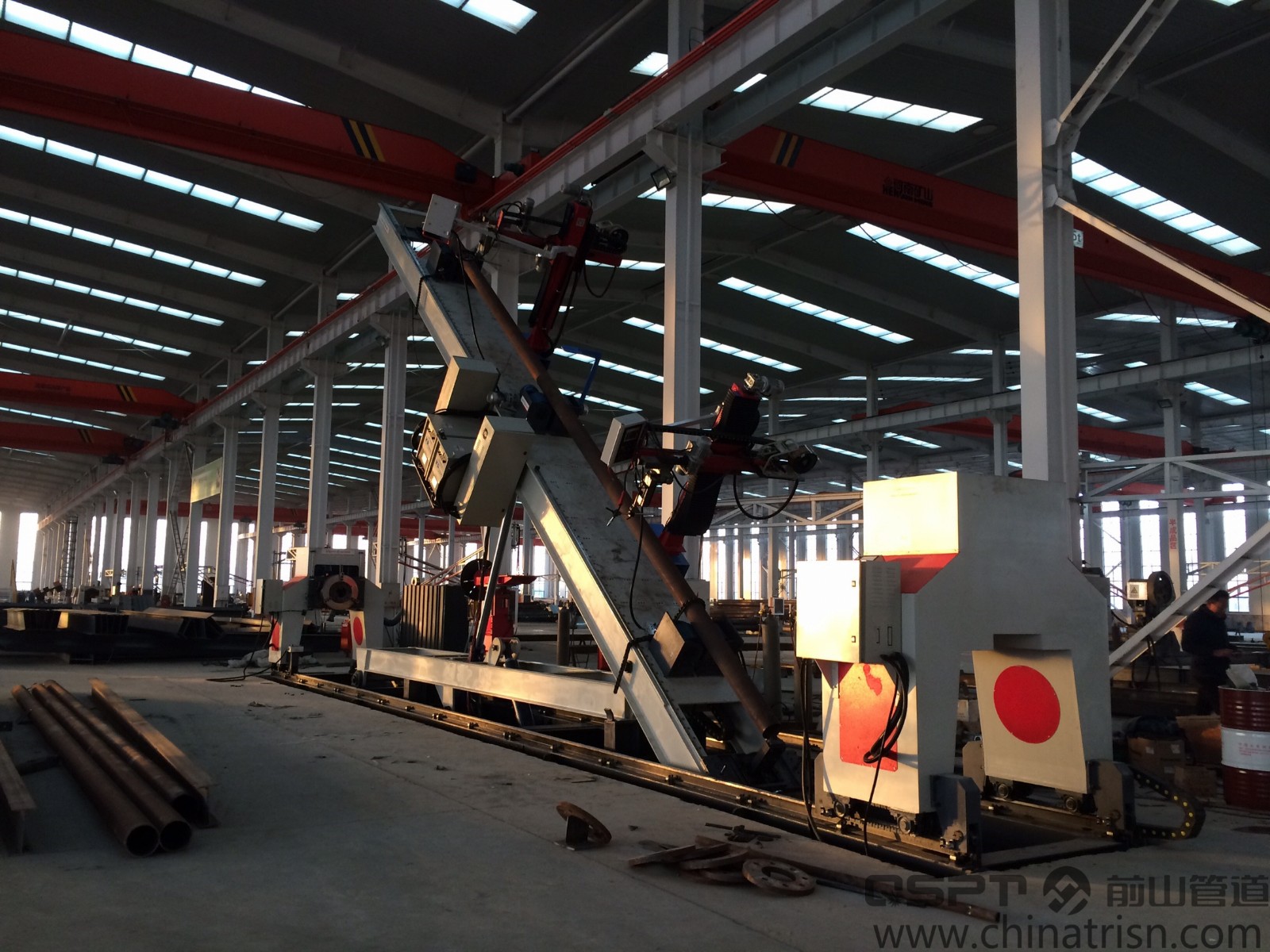

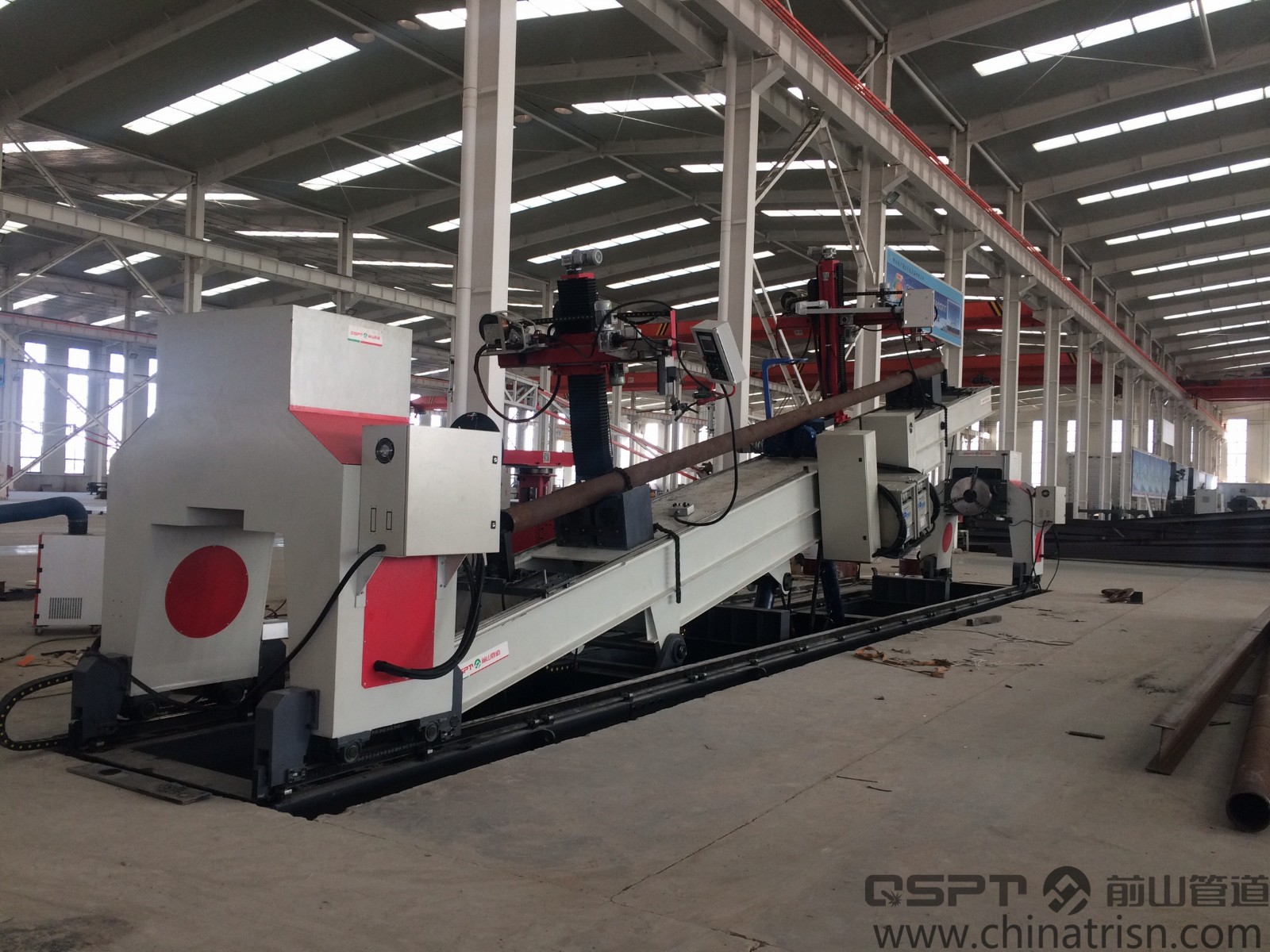

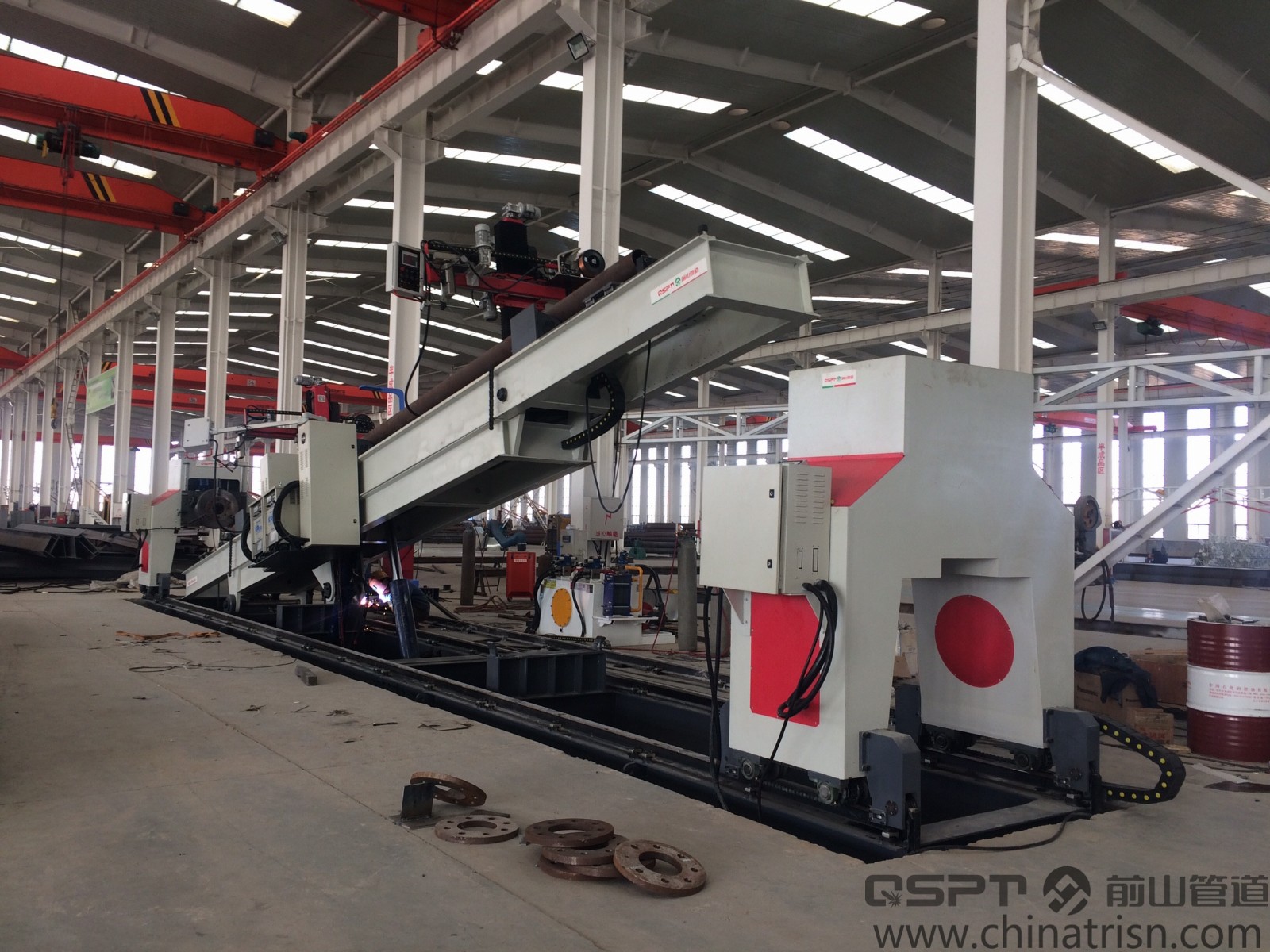

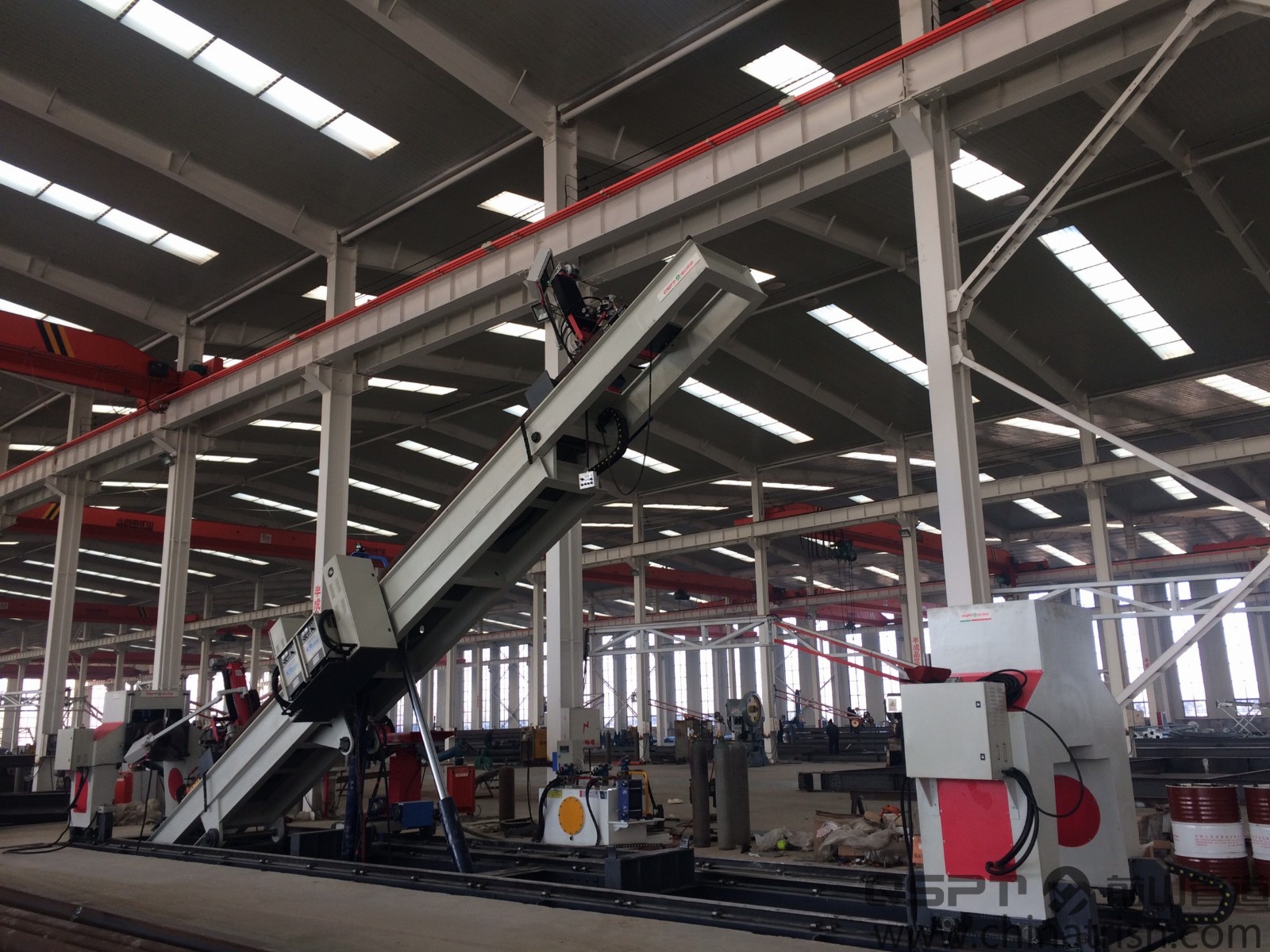

性能特点：较好解决了普通平焊法兰自动焊机的局限性，提高电力行业和造船行业管道预制的整体工作效率和焊接质量; 可实现平焊法兰与管子的两端同步组对，平焊法兰和管子间角焊缝的船形焊接及进行管子与筋板间的角焊缝的焊接; 通过2个大型液压缸来实现快速变位；适用于“平焊法兰+管子+平焊法兰”工件的组对焊接；当工件处于一个倾斜位置时，2把焊枪同时进行2道焊缝（上部内焊缝，下部外焊缝）的船形焊接，当切换到另一个倾斜位置时，2把焊枪同时再进行另外2道焊缝（上部内焊缝，下部外焊缝）的船形焊接。
Performance Features: It eliminates the limitation of ordinary slip on flange automatic welding machine, and improves the overall working efficiency and welding quality of pipe prefabrication in power industry and shipbuilding industry. The synchronization fit up between the both ends of the slip on flange and the pipe can be realized, the fillet joint of ship shape welding between the slip on flange and the pipe can be realized;the fillet joint welding between the pipe and the reinforcing plate. to achieve rapid displacement by 2 large size hydraulic cylinders; it is suitable for fitting up &welding of the workpiece of "slip on flange + pipe + slip on flange ". When the workpiece is in an inclined position, 2 welding torches simultaneously to carry out the fillet joint of ship-shaped welding of 2 weld joints (insidefillet joint at upper, outside fillet joint at bottom), when switching to another inclined position, 2 welding torchessimultaneously to carry out the fillet joint of ship-shaped welding of another 2 weld joints (outsidefillet joint at upper, inside fillet joint at bottom).
