管道预制生产线简述

管道预制生产线可以分为三类

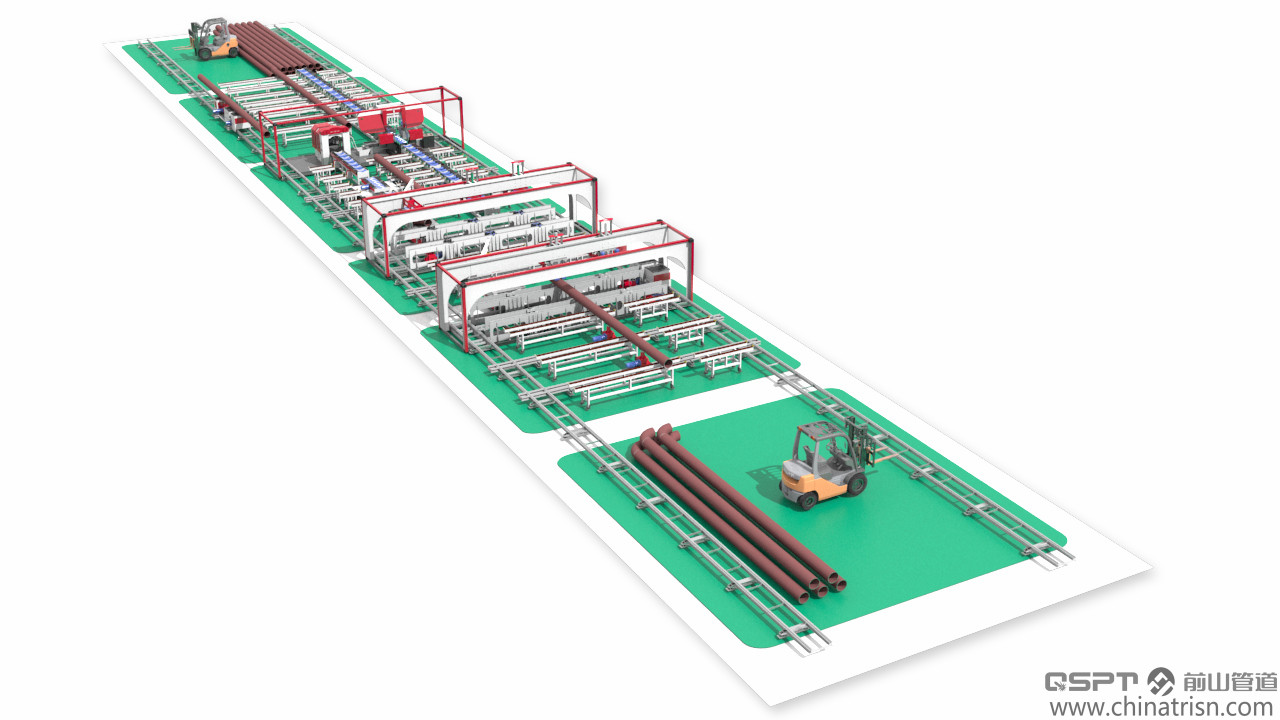

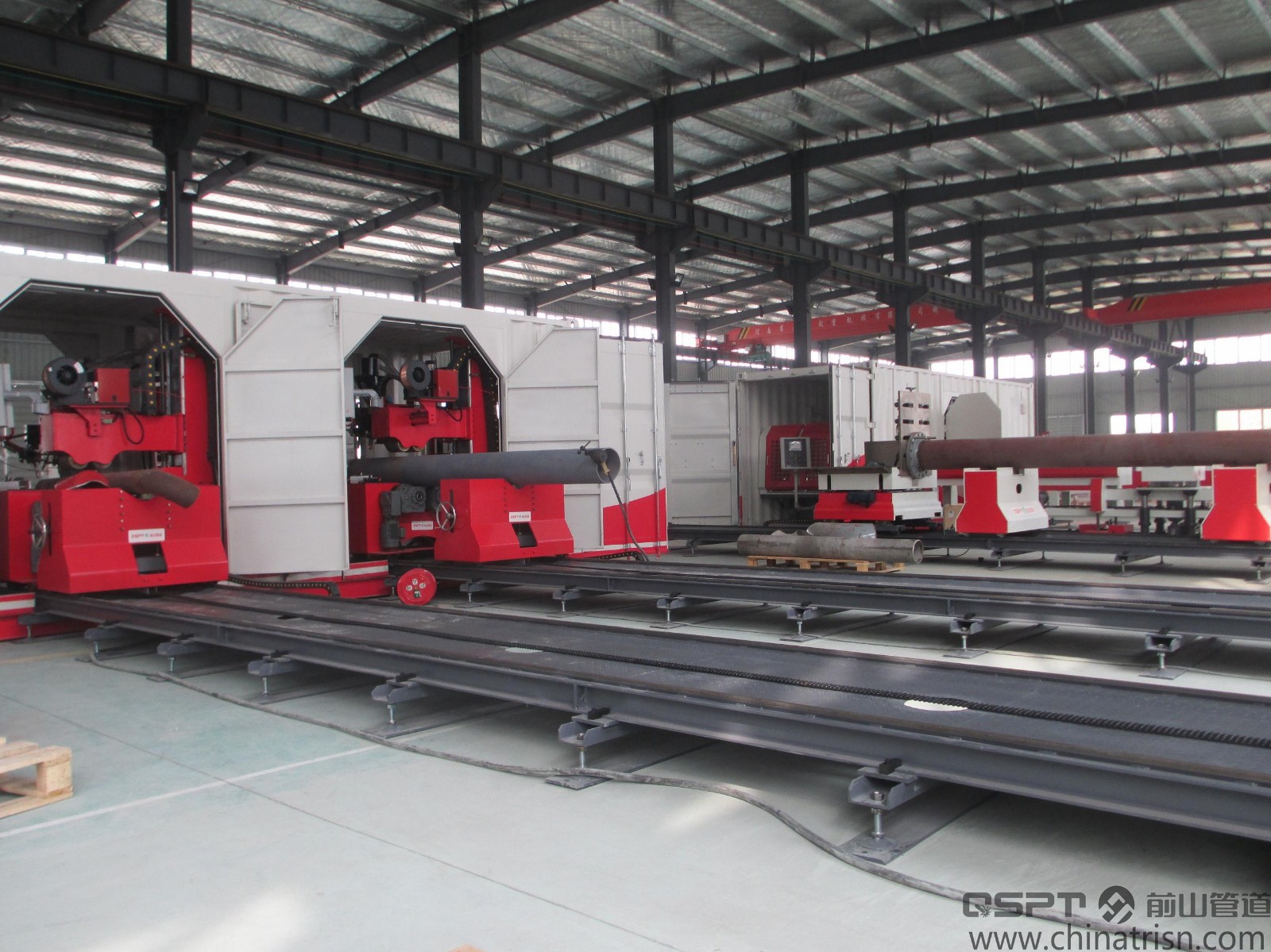

移动车间式管道预制

性能特点：利用移动式厂房；采用详图设计系统软件进行管段产品图纸设计、采用过程管理软件进行预制过程高效精细化管理、采用管道预制坡口加工中心进行高质量的机械坡口加工、采用管道预制组对焊接中心进行管段的快速组对、采用道预制组对焊接中心利用QSPT打底技术进行MIG高效高质量打底焊接、采用SAW进行高效填充盖面焊接、配置充足数量的纵横向物流输送系统、实现安全可靠的地面输送系统

Performance features: Utilized the moveable type workshop; Using PDSOFT Pipe fabrication Detail Design Software for designing spool pieces; Using PDSOFT Pipe Fabrication Process Management Software for elaborate management with high efficiency; Using Pipe Fabrication BevelPreparation Centre for high quality mechanical bevel;; Using Pipe Fabrication Fitting-up & Welding Centre for high-efficiency high-quality MIG root weldingwith QSPT’s technology; Using SAW for high efficiency fillin and cap welding; equipped with adequate numbers of conveying systems capable of longitudinal/lateral conveying to ensure safe and reliable ground conveying.

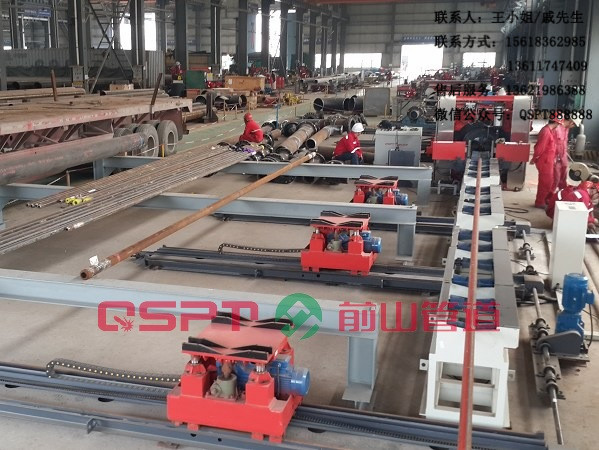

固定车间式管道预制

性能特点：利用固定式厂房；采用详图设计系统软件进行管段产品图纸设计、采用过程管理软件进行预制过程高效精细化管理、采用数控切割和坡口设备进行高质量的机械坡口加工、采用组对器进行管段的快速组对、采用各类自动焊机利用QSPT打底技术进行MIG高效高质量打底焊接、采用SAW进行高效填充盖面焊接、配置充足数量的纵横向物流输送系统、实现安全可靠的地面输送系统

Performance features: Utilized the fixed type workshop; Using PDSOFT Pipe fabrication Detail Design Software for designing spool pieces; usingPDSOFT Pipe Fabrication Process Management Software for elaborate management with high efficiency; using CNC cutting & beveling equipment for high quality mechanical bevel; using fitting-up machine for fast spool piecesfit-up; using various types automatic welding machines for high-efficiency high-quality MIG root weldingwith QSPT’s technology; using SAW for high efficiency fill in and cap welding; equipped with adequate numbers of conveying systems capable of longitudinal/lateral conveying to ensure safe and reliable ground conveying.

撬装场地式管道预制

性能特点：利用项目现场的场地；采用详图设计系统软件进行管段产品图纸设计、采用过程管理软件进行预制过程高效精细化管理、利用坡口加工工作站的数控切割和坡口设备进行高质量的机械坡口加工、利用组对焊接工作站的组对器进行管段的快速组对、分体式自动焊机利用QSPT打底技术进行MIG高效高质量打底焊接、采用SAW进行高效填充盖面焊接、配置充足数量的纵横向物流输送系统、实现高效安全可靠的地面输送系统

Performance features: Utilized the local place on project site; Using PDSOFT PipeFabrication Detail Design Software for designing spool pieces; Using PDSOFT PipeFabrication Process Management Software for elaborate management with high efficiency; Using CNC cutting & beveling equipment of pipe cutting & beveling workstation for high quality mechanical bevel; Using fitting-up machine of Fitting-up & Welding Workstation for fast spool pieces fit-up; Using Split typePipe Fabrication Automatic Welding Machine for high-efficiency high-quality MIG root welding with QSPT’s technology; Using SAW for high efficiency fillin and cap welding; configure with adequate numbers of conveying systems capable of longitudinal/lateral conveying to ensure safe and reliable ground conveying.
