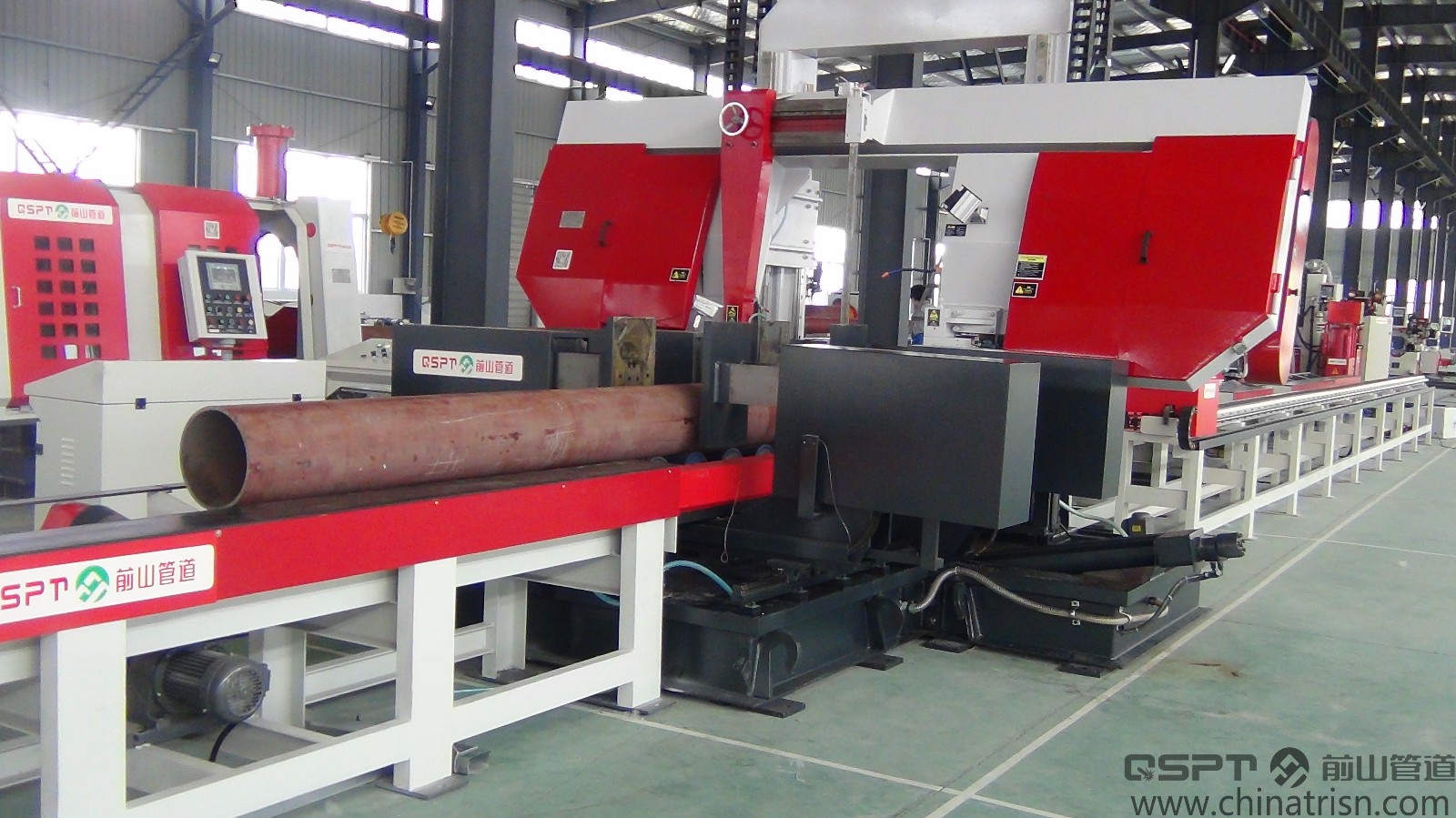

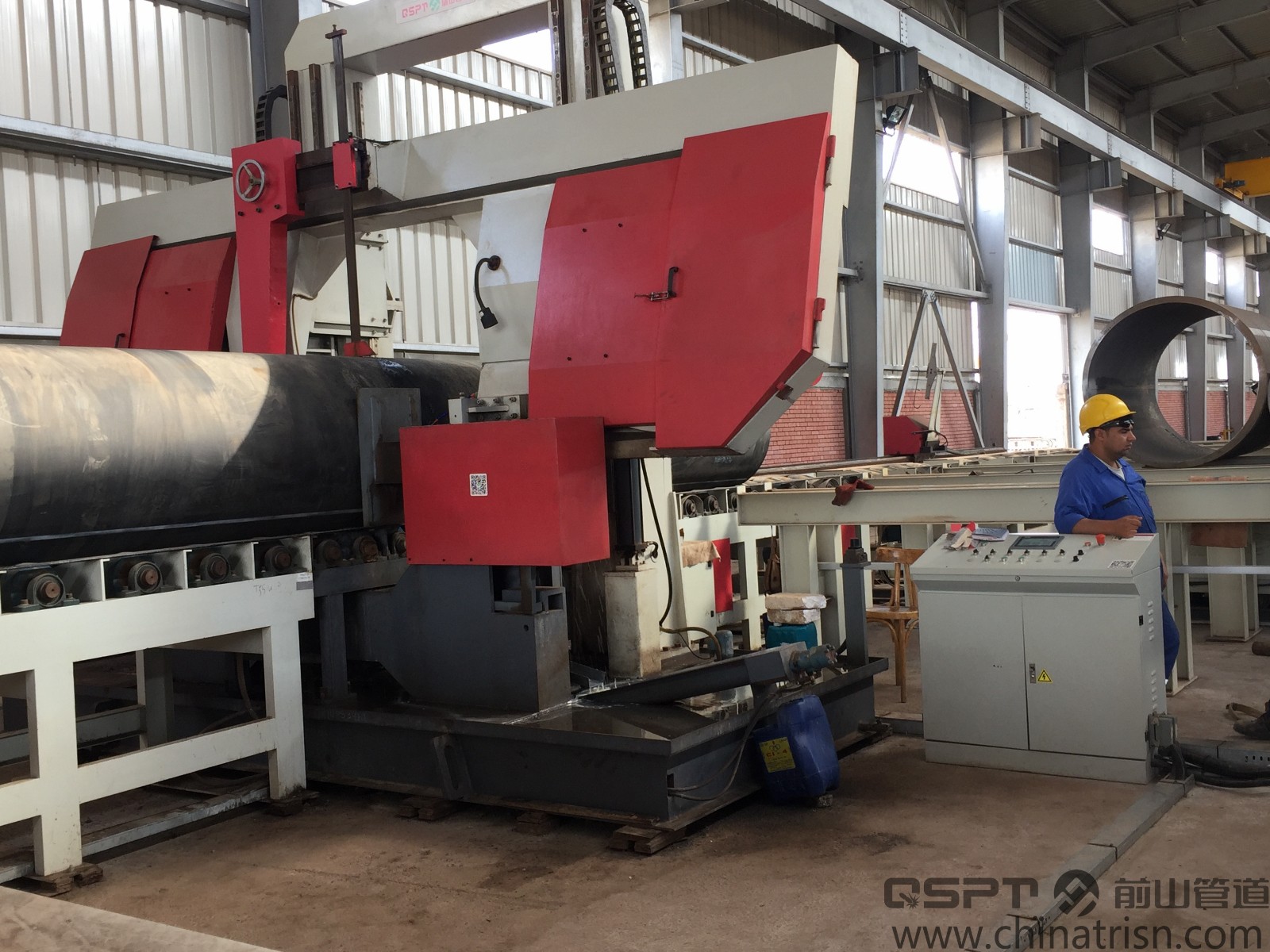

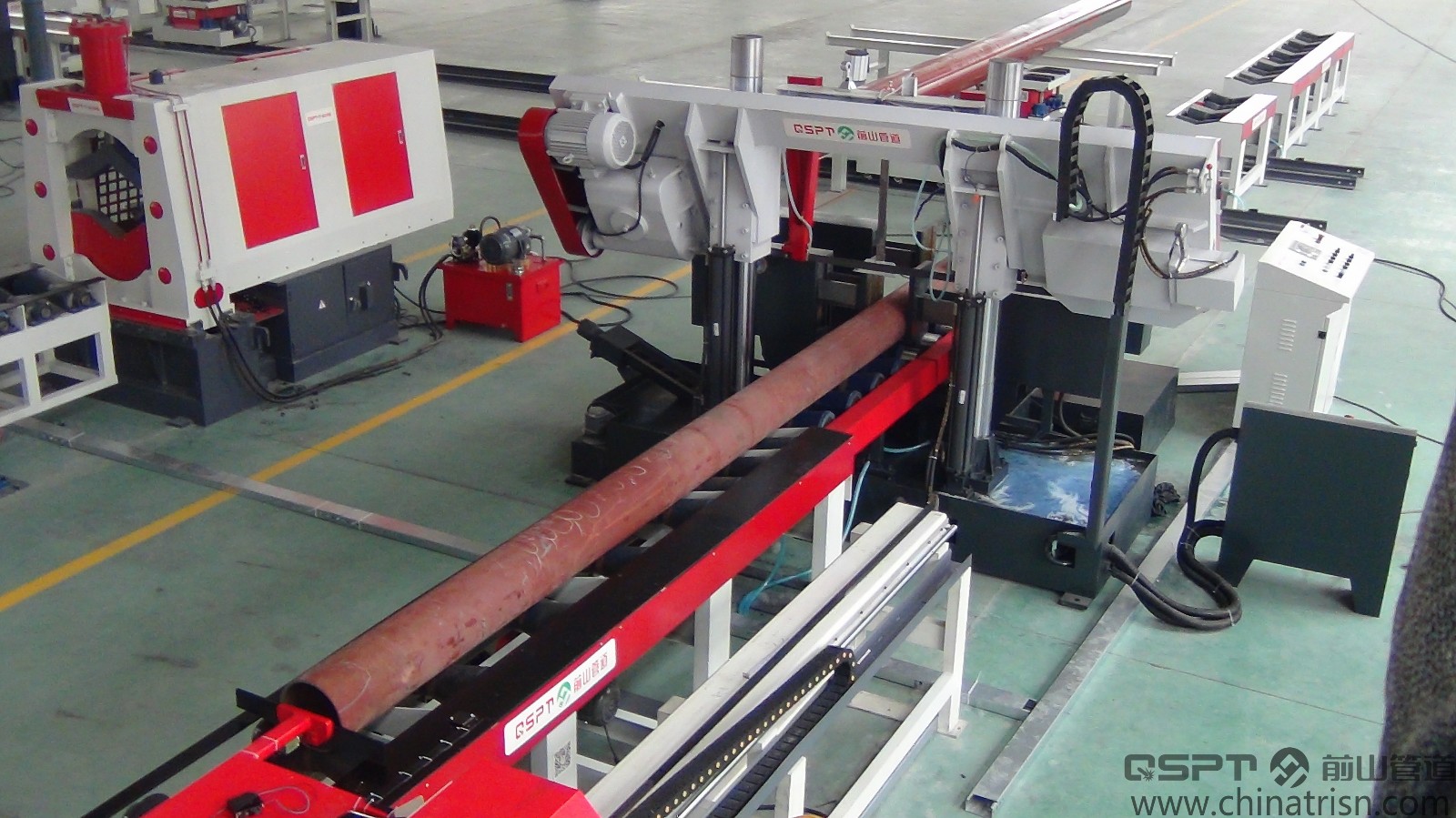

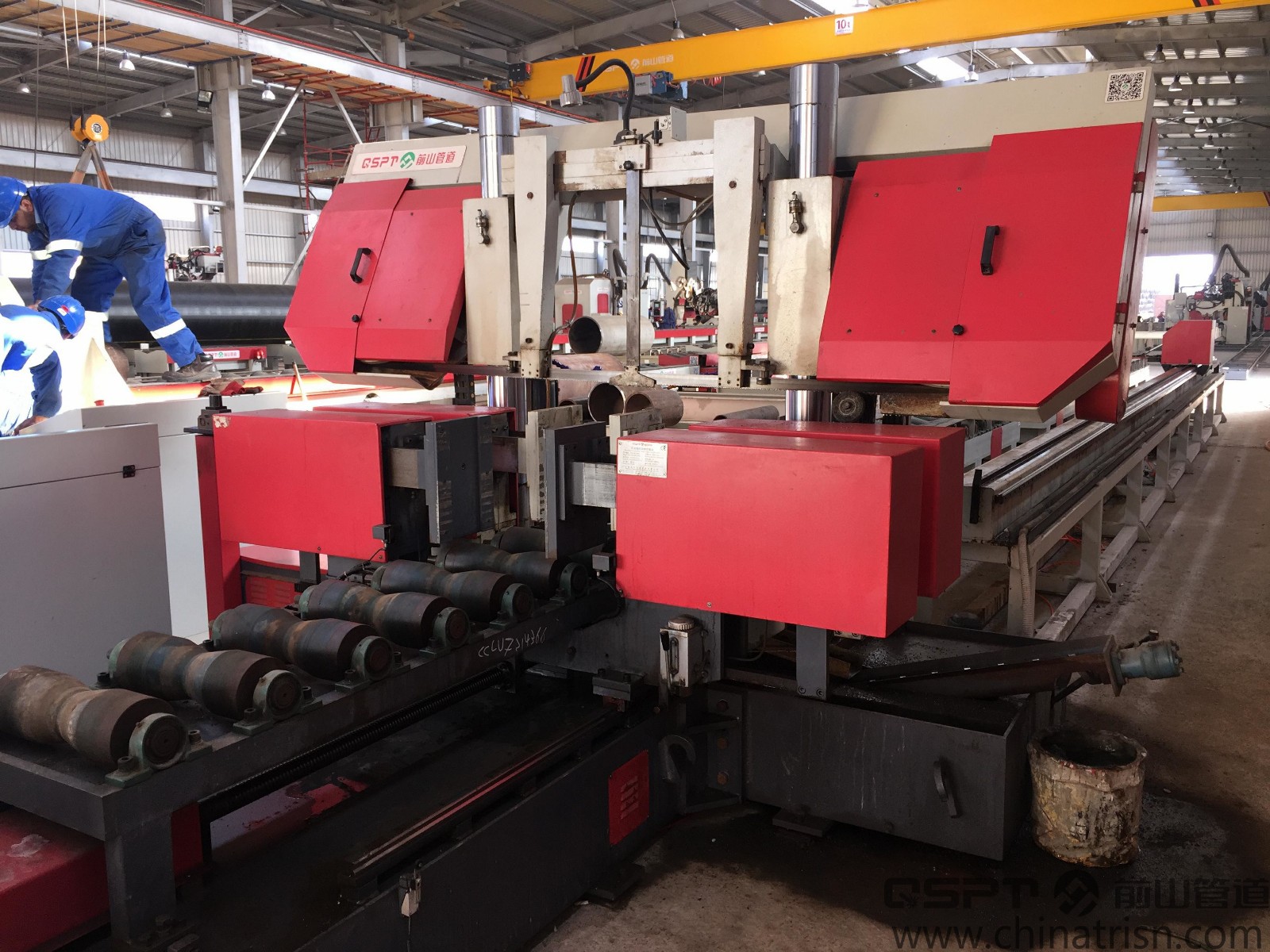

产品型号：PCBSM-16Ab/24Ab/32Ab/40Ab/48Ab/60Ab
Model: PCBSM-16Ab/24Ab/32Ab/40Ab/48Ab/60Ab
适用管径：DN400/DN600/DN800/DN1000/DN1200/DN1500
Pipe Diameter Applicable: DN400/DN600/DN800/DN1000/DN1200/DN1500
性能特点：前置2对夹钳机构；伺服电机+滚珠丝杆定长系统；双侧液压缸同步对中夹紧；V型辊轮对中输送；切削速度变频无级调节；人机界面中预置数据后进行多段管子的连续自动切割
Performance Feature: Front mounted twoclampingmechanism; servo motor + ball-bearing screw length-measuring system, two-side synchronous clamping with hydraulic cylinders; built-in V-type roller centering conveying; VF stepless cutting speed control system ; automatically and continuously cutting multiple sections of pipes after presetting data through man-machine interface.
