管子储存立体仓库3D

功能介绍 Function introduction

产品型号:PS3DW-16Aa/24Aa

Model: PS3DW-16Aa/24Aa

适用管径:DN400/DN600

Pipe Diameter Applicable: DN400/DN600

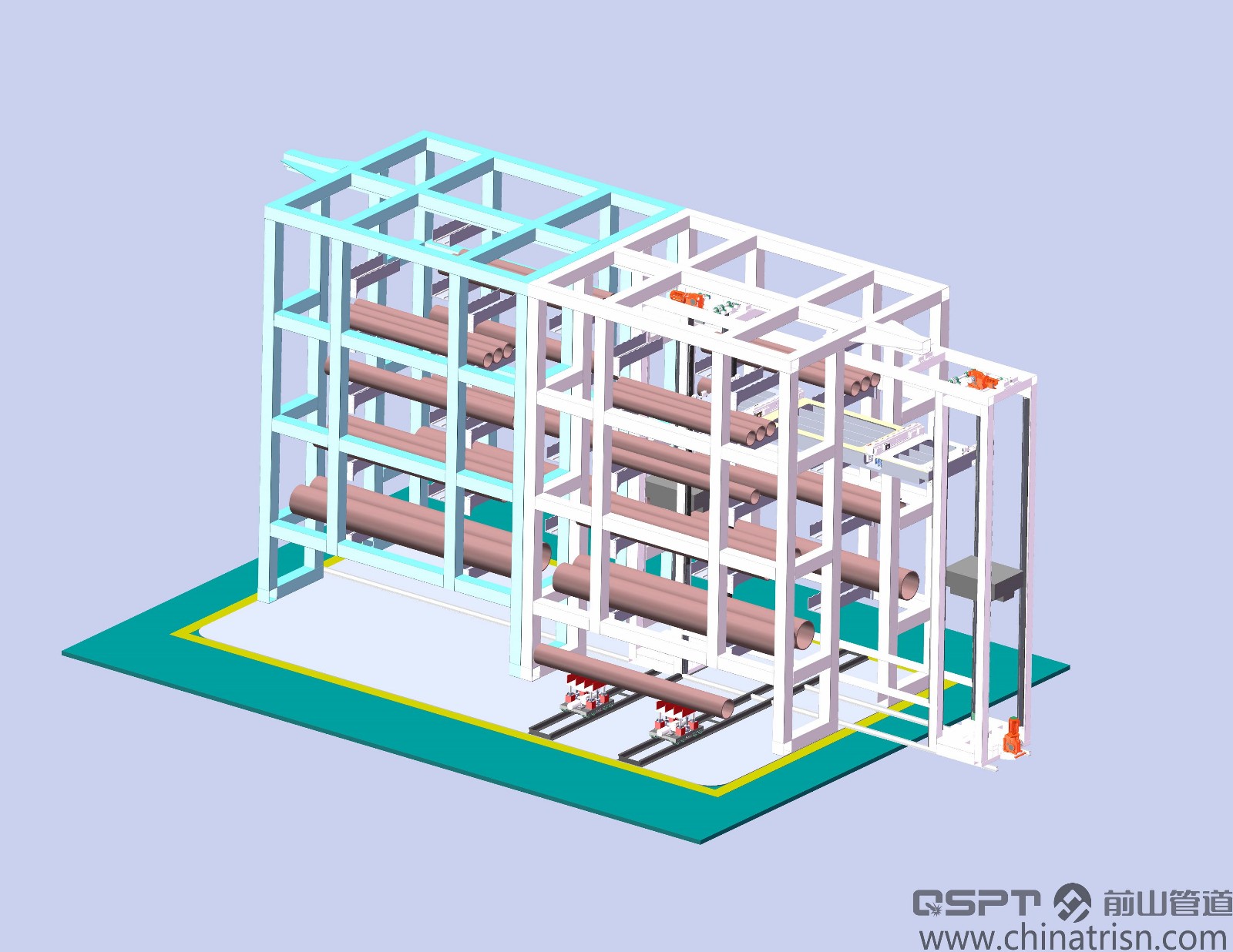

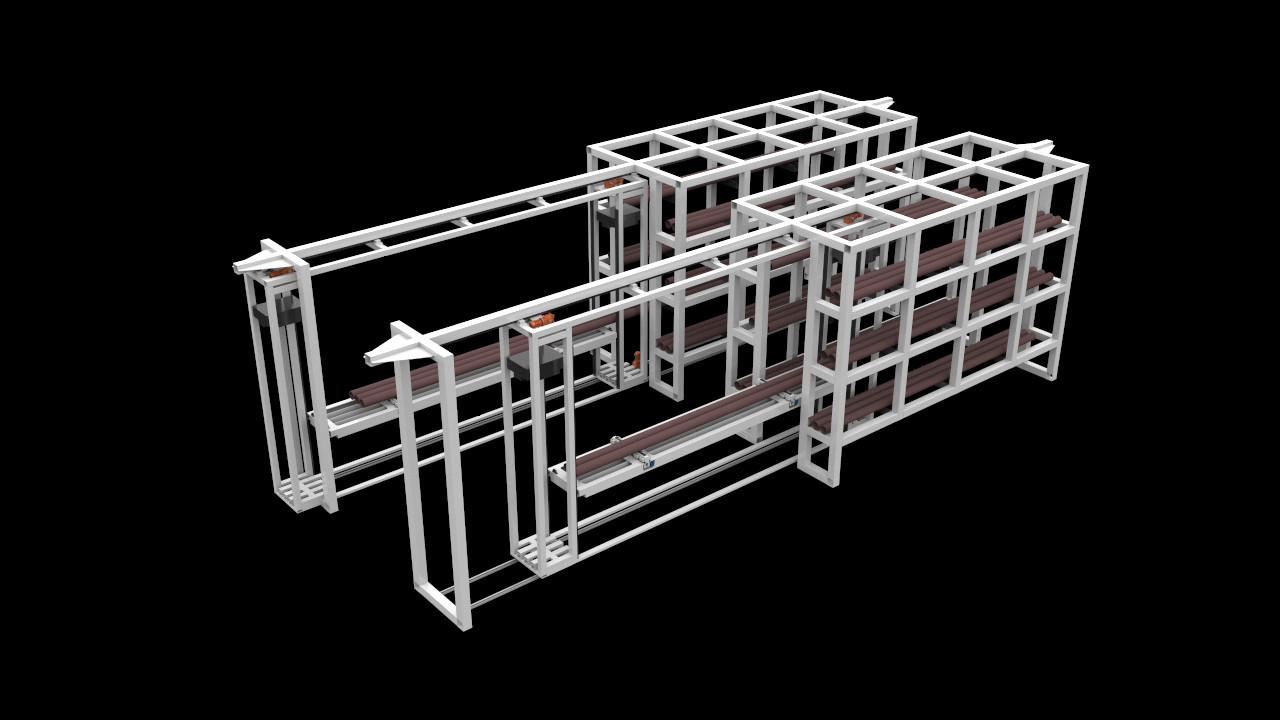

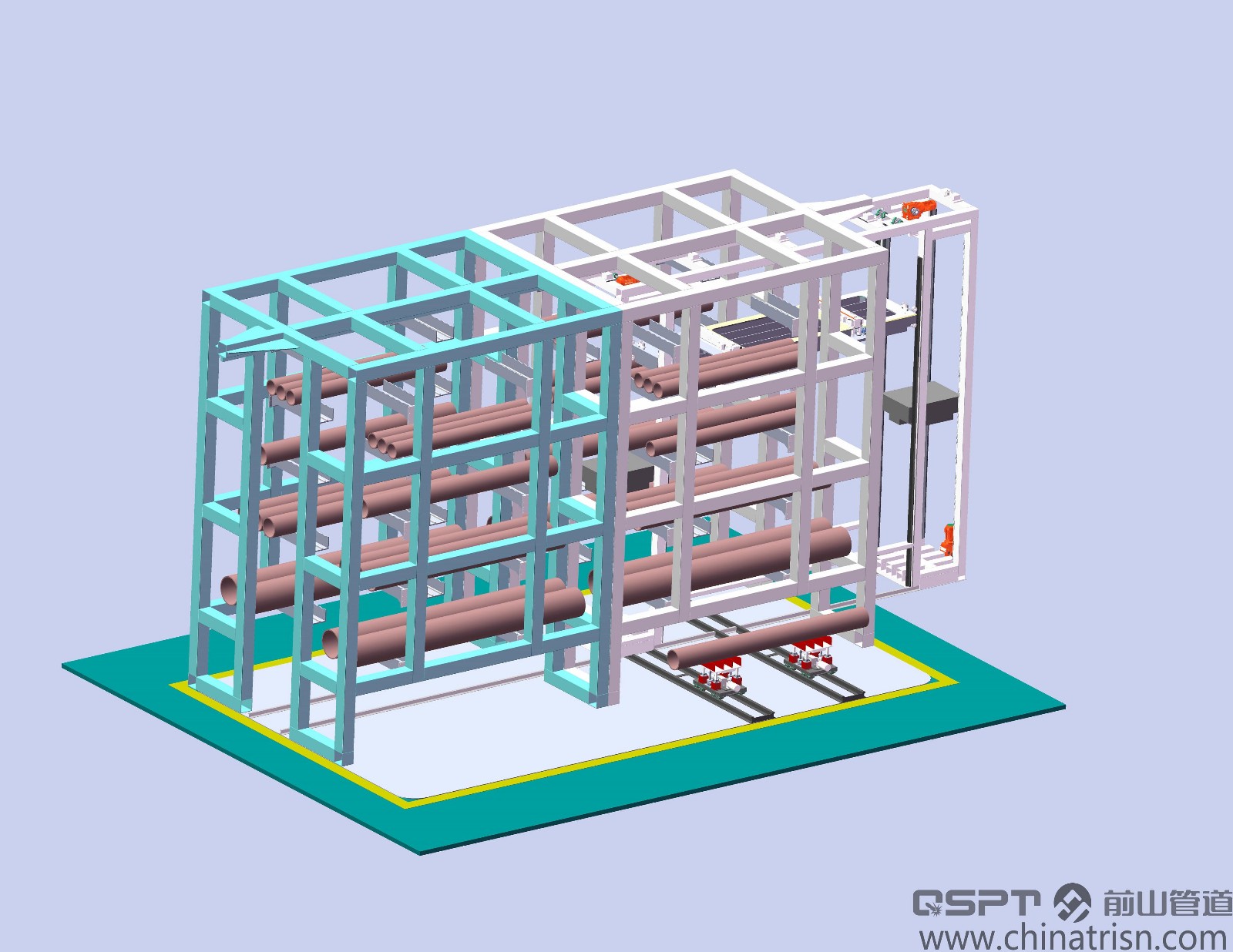

性能特点:由立体货架、堆垛机、输送小车、工控系统等4部分组成;储存货架标配为二排二列,可分层、分档进行管子储存;堆垛机可进行管子的自动垂直提升和水平移动;输送小车可自动将管子送入、送出立体仓库;适用管子直径DN600、管子壁厚30mm、管子长度12米;由安装有管理系统软件的工控机进行实时控制,实现单根管子的快速储存和提取。可与管道工厂预制智能管理系统Pipe Shop FabricationIntelligent Management Software实时共享存储信息。

Performance Features: Its compose of 3D Storage rack, stocker, conveying trolley, IPC etc 4 portions; standard configuration of storage rack are two rows & two lines, can be layered & separated level to pipe storage;  The stacker can carry out automatic longitudinal lifting and horizontal movement of pipe; the conveying trolley can automatically feeding pipes into and out of three-dimensional warehouses (dispensers), pipe diameter is applicable DN600, pipe wall thickness 30mm, pipe length 12 meters; The real-time control of industrial computer with management system software is carried out to realize the fast storage and take out of single pipe. Its can real-time shared storage information withPipe Shop Fabrication Intelligent Management software.
